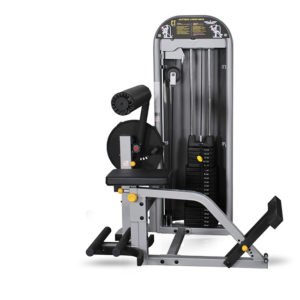

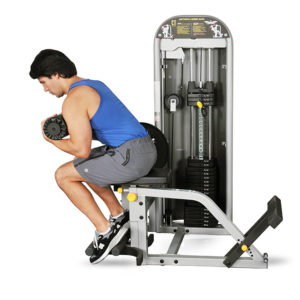

Inflight Multi Ab and Back Machine (CT-MAB)

Inflight Multi Ab and Back Machine (CT-MAB)

Inflight Multi Ab and Back Machine (CT-MAB)

Out of stock

Standard

  • Adjustable seat height and foot brace positions accommodate a wide range of users.
  • AB/Back pad has five adjustments for varying ranges of motion.
  • Easy access weight stack.
  • Compact design and ball bearing pivots.

Optional

  • Steel shrouds powder coated and clear coated for a mar resistant lustrous finish.
  • Standard 200 lb. tiered weight stack is upgradeable in 50 lb. increments to 300 lbs.
Category: Ab and Back

This product is currently out of stock and unavailable.

Description

If you want to develop six-pack abs or are interested in strengthening your lower back, the Inflight Multi Ab and Back Machine (CT-MAB) is the perfect tool for the job.

A gym-quality machine that is perfect for use at home, at school or in a community fitness center, the Inflight Multi Ab and Back Machine provides a strong, secure base to complete all of your ab exercises.  It’s an easy to use option that provides a top of the line gym experience in a simple to operate fitness machine.

  • When it comes to meeting your fitness goals, the Inflight Multi Ab and Back machine can make a big impact.
  • The exclusive design from the fitness experts at Inflight allows for easy set up, with a weight stack of up to 200 pounds for a customized workout.  The Inflight Multi Ab and Back machine is easy for all fitness levels to use and is durable enough for setup in a commercial gym environment.
  • With minimal maintenance requirements and no tricky parts to worry about, the Inflight Multi Ab and Back Machine provides a reliable and dependable way to work on your fitness.



Inflight Multi Ab and Back Machine Features

The Inflight Multi Ab and Back Machine (CT-MAB) includes non-absorbent, UV resistant vinyl foam grips and cast steel weight plates that are guaranteed against breakage.

The pulley system includes double sealed roller bearings for smooth movement, while the frame includes self-aligning plastic bushings and heavy-duty rubber spaces located below the weight stack for reduced sound upon impact.

The Inflight Multi Ab and Back Machine also includes comfortable foam cushions, molded from high density foam and covered with highly durable black vinyl.  With a 12 gauge minimum structural steel-tubed frame and ¼” thick flanges coated with a non-corrosive powder, the Inflight Multi Ab and Back machine is a durable option that is designed to last in just about any environment.

The machine holds up well in busy gym environments and in home gyms, and is easy to setup and operate as well.

Additional Inflight Multi Ab and Back Machine Benefits

The Inflight Multi Ab and Back Machine (CT-MAB) provides a smooth, controlled movement of weight that keeps you safe and secure during each rep.  The seat and back pads feature attractive stitching for a crisp, tailored look, while the commercial grade foam offers a comfortable place to sit.

Inflight Multi Ab and Back Machine Warranty

The Inflight Multi Ab and Back Machine cast steel weight plates come with a lifetime warranty against breakage and a lifetime warranty on the frame. There is a 1-year warranty on all parts, and a 90-day warranty on the upholstery.

Inflight Multi Ab and Back Machine (CT-MAB) FEATURES:

Frame Materials:
All Inflight Fitness exercise equipment is constructed of heavy-duty 11 and 12ga structural tubing with an ASTM rating of A500 grade (minimum mechanical properties of 58,000 PSI ultimate tensile strength and 46,000 PSI yield strength). All flanges are a minimum of ¼” thick. All steel components are machined to a minimum tolerance of +/- .030″.

Construction:
All MIG (metal inert gas) welding is in accordance with the following codes and/or standards: 3:1 AWS, A3.0 Welding Terms and Definitions 3.2 AWS Dl.1-81 Structural Welding Code-Steel 3.2 AWS D9.1 Specifications. All TIG (tungsten inert gas) welding is in accordance with Mil-Std-2219.

Frame Finish:
Each piece of equipment is prepared for powder coating with a high-temperature, high-pressure iron phosphate wash to ensure optimum adhesion of the electrostatically applied TGIC polyester powder. The coating is then baked at 375 degrees F and carefully monitored to ensure complete curing. This coating is scuff resistant and long wearing. Technical summaries are determined using 3.0 -5.0 mil powder film over iron-phosphated, pretreated steel using and conforming with the following test methods: ASTM B5965-96, C ASTM D 3451-93, 13 ULDTOV2 organic coatings.

Padding and Upholstery:
All of our selectorized weight equipment is fitted with black vinyl covered HR molded cushions. The molded cushions have a density of 100 and a durometer of 40-45. The back cushions incorporate lumbar support and the bottom cushions are contoured to provide comfort and proper positioning. This material is long lasting and easy to clean.

However, if you need a custom color, custom pads are available. We use a padding material of 2″ thick crosslinked polyolefin foam, which has extremely low water absorption, excellent weathering properties, and superior physical properties to neoprene or polyurethane type foams. We cover the pad with your choice of “Naugahyde” or “Boltaflex” vinyl.

All pads are top and blind-stitched. Foam is glued to a 3/4″ thick support board, radiused and chamfered for durability.

Bearings:
All pivots rotate on either ABEC-1 precision ball bearings (Load Rating for 1″=2529 pounds), contained in a cast or machined housing or a self-lubricating Oilite bronze bushing in a machined steel housing to provide smooth, quiet movement and precise alignment.

Cables:
1/4″ diameter, 7 x 19 strand, mil-spec aircraft cable with a black nylon coating. All fittings are stainless steel and swaged to the cable. The cable assembly is rated at a minimum breaking strength of 4200 lbs.

Pulleys:
Pulleys are 4 1/2″ diameter fiberglass-impregnated nylon with a precision fit cable groove and 6203 double sealed roller bearings.

Weight Plates and Dampening:
All Inflight Fitness selectorized equipment feature solid cast steel weight stack plates with a black finish. Self-aligning low friction sleeve bearings surround the guide rods on every weight stack plate. Weight plates are warranted against breakage for the lifetime of the machine. Heavy-duty rubber spacers are used under the weight stack to absorb shock and reduce noise.

Guide Rods:
To ensure quiet operation and low friction movement, all machines are fitted with 1″ diameter floating chrome plated guide rods with rubber cushion plugs on each end.

Lanyard attached pins:
All Inflight Fitness selectorized equipment feature weight stack pins that are attached with a coiled self-storing cord to prevent pin removal or loss.

Fasteners:
All bolts meet ANSI B18.3 specifications. One-time use aircraft style center-locking nuts are used to ensure attach points remain secure.

Handgrips:
Our handgrips are manufactured from nonabsorbent UV resistant closed cell PVC vinyl foam for comfort, safety and durability.



Specifications

  • Adjustable seat height and foot brace positions accomodate a wide range of users.
  • AB/Back pad has five adjustments for varying ranges of motion.
  • Easy access weight stack.
  • Ball bearing pivots.
  • Frame Color: White
  • Upholstery Color: Black
  • Custom upholstery optional
  • Platinum or Black frame color optional – Longer lead time of 3 weeks
  • Dimensions: 39″W x 50″L x 61.75″H
  • Weight: 404 lbs.
  • Weight stack 200 lbs.
  • Bearings: ABEC1 precision ball bearings in a cast or machined steel housing.
  • Cables: 3/16″ diameter coated to 1/4″, 7×19 strand, LOOS USA mil-spec cable.
  • Cushions: Black vinyl sewn over contoured cushions molded of 100 density, 40-45 durometer HR foam. Custom colors available.
  • Frame: 12 gauge minimum structural steel tubes, 1/4″ minimum thick flanges coated with electrostatically applied powder.
  • Grips: Non-absorbent, UV resistant, closed-cell vinyl foam.
  • Guide Rods : 1″ floating guide rods with rubber cushion on each end.
  • Pulleys : 4 1/2″ fiberglass impregnated nylon with double sealed roller bearings.
  • Shrouds : (Optional) .040 thick steel, black powder- coated texture.
  • Weight Plates: Cast steel weight plates are lifetime warranted against breakage. Self-aligning plastic bushings and heavy-duty rubber spacers below the weight stack reduce noise.
