Description

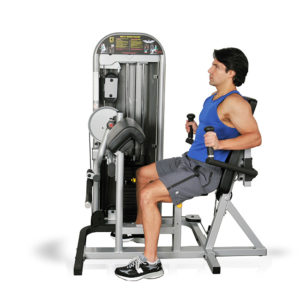

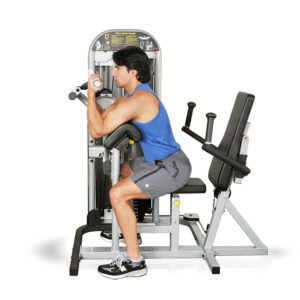

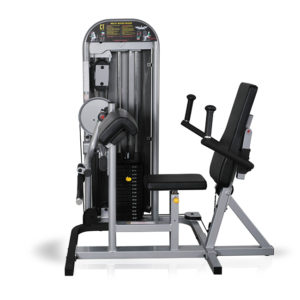

This Inflight Multi Bicep-Tricep Machine (CT-MBT) is a top of the line product that makes it possible to sculpt the arms and get the results men and women crave. Many people find the arms to be a huge challenge, even for experienced fitness lovers. Typically the reason is a lack of consistency and a focused fire approach to applying tension to the biceps and triceps.

It’s designed so that users can go from a perfect posture bicep set into a tricep set with minimal rest period in between. One quick adjustment and it’s a completely different arm exercise. Once people find the perfect fit for their height and arm length, it’s about slow tempo sets that pile on the muscle tension!

Inflight Multi-Purpose Arm Machine Features & Specifications

There are a total of five unique seating positions that make the machine accessible to nearly everyone. There’s plenty of leg room, even for bigger people. The compact design of the Inflight Multi Bicep-Tricep Machine (CT-MBT) is perfect for gyms that like to showcase a machine-based circuit training area for their users. People can scoot right in with ease, and adjust the weight stack at will to make it as easy or as difficult as they need.

The design is specialized for maximum comfort which is why the commercial grade upholstery comes with a molding that people enjoy sitting on. Furthermore, it takes a beating and stays scratch and tear resistance. Plus it won’t fade in time either, but stay looking pretty. Now, in terms of the technicalities, the verbiage gets complicated quick. Suffice it to say that every component is top notch.

From the pulleys and shrouding to the guide rods and bushings there is really no other fitness product quite like this one.

Extra Benefits & Inflight Warranty Information

For commercial and home-gym owners, this machine is as reliable as it gets. There really is nothing else that you can safely and securely relax with, knowing it’s built to last a lifetime. In fact, the frame is under warranty for life! This from Inflight, who for a long time were known for manufacturing commercial aircraft parts.

It’s also about the fine details. For example, the grips are made with a hard to find closed-cell vinyl foam, and they’re UV resistant! They also are non-absorbent so that they stay clean. Look again at the style and appearance. It just screams professional-grade equipment. Reinforced with the dynamic ergonomic engineering.

Again, building the arms is all about pin-pointed tension, consistency and proper form. All them are a breeze and because of how easy it is to switch from one to the other, this is an ideal part of any serious full-body circuit routine. Check out the unprecedented Inflight Multi Bicep-Tricep Machine (CT-MBT) and get your arms sculpted in no time!

Frame Materials:
All Inflight Fitness exercise equipment is constructed of heavy-duty 11 and 12ga structural tubing with an ASTM rating of A500 grade (minimum mechanical properties of 58,000 PSI ultimate tensile strength and 46,000 PSI yield strength). All flanges are a minimum of ¼” thick. All steel components are machined to a minimum tolerance of +/- .030″.

Construction:
All MIG (metal inert gas) welding is in accordance with the following codes and/or standards: 3:1 AWS, A3.0 Welding Terms and Definitions 3.2 AWS Dl.1-81 Structural Welding Code-Steel 3.2 AWS D9.1 Specifications. All TIG (tungsten inert gas) welding is in accordance with Mil-Std-2219.

Frame Finish:
Each piece of equipment is prepared for powder coating with a high-temperature, high-pressure iron phosphate wash to ensure optimum adhesion of the electrostatically applied TGIC polyester powder. The coating is then baked at 375 degrees F and carefully monitored to ensure complete curing. This coating is scuff resistant and long wearing. Technical summaries are determined using 3.0 -5.0 mil powder film over iron-phosphated, pretreated steel using and conforming with the following test methods: ASTM B5965-96, C ASTM D 3451-93, 13 ULDTOV2 organic coatings.

Padding and Upholstery:
All of our selectorized weight equipment is fitted with black vinyl-covered HR molded cushions. The molded cushions have a density of 100 and a durometer of 40-45. The back cushions incorporate lumbar support and the bottom cushions are contoured to provide comfort and proper positioning. This material is long-lasting and easy to clean.

However, if you need a custom color, custom pads are available. We use a padding material of 2″ thick crosslinked polyolefin foam, which has extremely low water absorption, excellent weathering properties, and superior physical properties to neoprene or polyurethane-type foams. We cover the pad with your choice of “Naugahyde” or “Boltaflex” vinyl.

All pads are top and blind-stitched. Foam is glued to a 3/4″ thick support board, radiused, and chamfered for durability.

Bearings:
All pivots rotate on either ABEC-1 precision ball bearings (Load Rating for 1″=2529 pounds), contained in a cast or machined housing or a self-lubricating Oilite bronze bushing in a machined steel housing to provide smooth, quiet movement and precise alignment.

Cables:
1/4″ diameter, 7 x 19 strand, mil-spec aircraft cable with a black nylon coating. All fittings are stainless steel and swaged to the cable. The cable assembly is rated at a minimum breaking strength of 4200 lbs.

Pulleys:
Pulleys are 4 1/2″ diameter fiberglass-impregnated nylon with a precision fit cable groove and 6203 double sealed roller bearings.

Weight Plates and Dampening:
All Inflight Fitness selectorized equipment features solid cast steel weight stack plates with a black finish. Self-aligning low friction sleeve bearings surround the guide rods on every weight stack plate. Weight plates are warranted against breakage for the lifetime of the machine. Heavy-duty rubber spacers are used under the weight stack to absorb shock and reduce noise.

Guide Rods:
To ensure quiet operation and low friction movement, all machines are fitted with 1″ diameter floating chrome plated guide rods with rubber cushion plugs on each end.

Lanyard attached pins:
All Inflight Fitness selectorized equipment feature weight stack pins that are attached with a coiled self-storing cord to prevent pin removal or loss.

Fasteners:
All bolts meet ANSI B18.3 specifications. One-time use aircraft style center-locking nuts are used to ensure attach points remain secure.

Handgrips:
Our handgrips are manufactured from nonabsorbent UV resistant closed cell PVC vinyl foam for comfort, safety and durability.



Specifications

• Five seat height positions
• Unique pushback exercise works entire tricep
• Compact design
• Easy access weight stack
• Ball bearing pivots
• Frame Color: White
• Upholstery Color: Black
• Custom upholstery optional
• Platinum or Black frame color optional – Longer lead time of 3 weeks
• Dimensions: 43.5″W x 53″L x 61.75″H
• Weight: 427 lbs.
• Weight stack 150 lbs.
• Bearings: ABEC1 precision ball bearings in a cast or machined steel housing.
• Cables: 3/16″ diameter coated to 1/4″, 7×19 strand, LOOS USA mil-spec cable.
• Cushions: Black vinyl sewn over contoured cushions molded of 100 density, 40-45 durometer HR foam. Custom colors available.
• Frame: 12 gauge minimum structural steel tubes, 1/4″ minimum thick flanges coated with electrostatically applied powder.
• Grips: Non-absorbent, UV resistant, closed-cell vinyl foam.
• Guide Rods : 1″ floating guide rods with rubber cushion on each end.
• Pulleys : 4 1/2″ fiberglass impregnated nylon with double sealed roller bearings.
• Shrouds : (Optional) .040 thick steel, black powder- coated texture.
• Weight Plates: Cast steel weight plates are lifetime warranted against breakage. Self-aligning plastic bushings and heavy-duty rubber spacers below the weight stack reduce noise.

Additional information

FULL SHROUDS	YES, NO
