Description

PRODUCT FEATURES

Instructional Placards
Yes

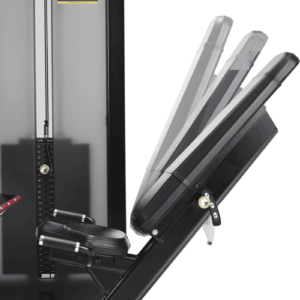

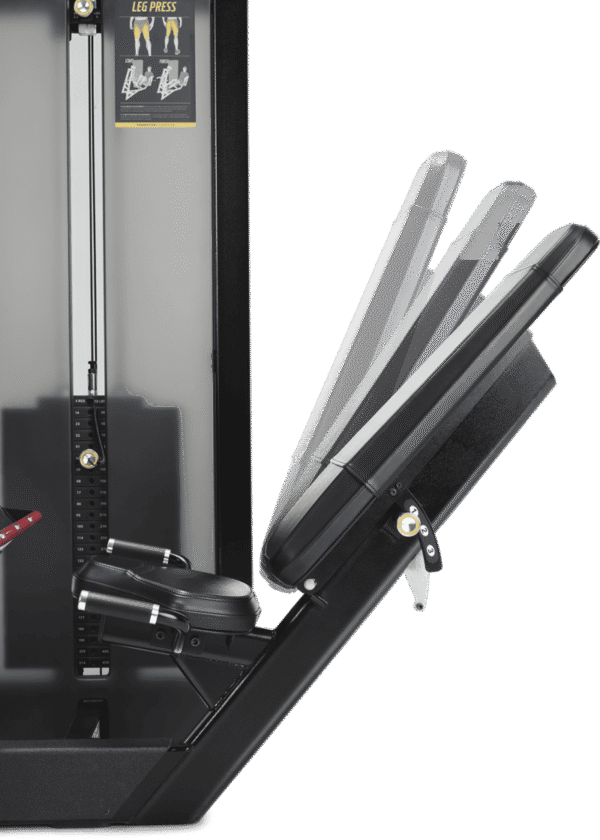

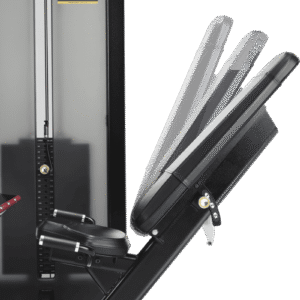

Adjustments
475 lb / 215.4 kg

Resistance
475 lb / 215.4 kg

Seat
Vinyl, 1.5 in / 3.8 cm thick foam

Pulleys
N/A

Cable Travel
N/A

Rubber Feet
Heavy Duty Floor Protectors

Maximum User Weight
350 lb / 159 kg

Americans with Disabilities Act (ADA)
N/A

PRODUCT SPECIFICATIONS

Weight Stack
475 lb / 215.4 kg

Drop Down Weight
5 lb / 2.2 kg

Weight Stack Configuration
10 lb / 4.5 kg top plate
20-470 x 20 lb / 9 kg

Standard Frame Color
Black River, Platinum Sparkle

Optional Frame Color
N/A

Plastic Color
Ebony

Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red

Optional Upholstery Color
Custom colors available upon request

Hand Grip Color
Black

PRODUCT DIMENSIONS & WEIGHT

Dimensions L x W x H
90.6 x 44.1 x 72.8 in / 230.1 x 112 x 184.9 cm

Footprint
90.6 x 44.1 in / 230.1 x 112 cm

Maximum workout area
90.6 x 44.1 in / 230.1 x 112 cm

Weight
1,146.4 lb / 520 kg

Shipping Dimensions
Box 1: 88.1 x 35 x 82.6 in / 233.7 x 88.9 x 209 cm
Box 2: 41.7 x 13 x 3.9 in / 105.9 x 33 x 9.9 cm

Shipping Weight
Box 1: 1252.2 lb / 567.8 kg
Box 2: 17.6 lb / 7.9 kg

WARRANTY (US & CANADA)

Frame: 10 Years
Parts: 3 Years
Cables & Labor: 1 Year
Cosmetic & Wear Items: 6 Months
Upholstery & Padding: 120 Days

WARRANTY (INTERNATIONAL)

Frame: 10 Years

Parts: 3 Years

Cables & Labor: 1 Year

Cosmetic & Wear Items: 6 Months

Upholstery & Padding: 120 Days

Additional information

Weight	1252.2 lbs
Dimensions	88.1 × 35 × 82.6 in
