Description

PRODUCT FEATURES

Instructional Placards
Yes

Adjustments
N/A

Resistance
1 arm: 75 lb / 34 kg
2 arms: 150 lb / 68 kg

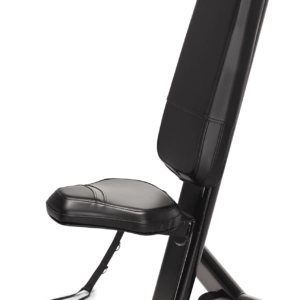

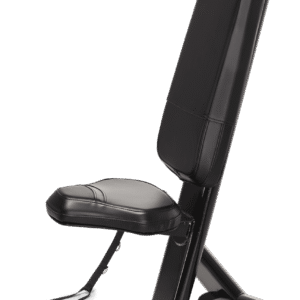

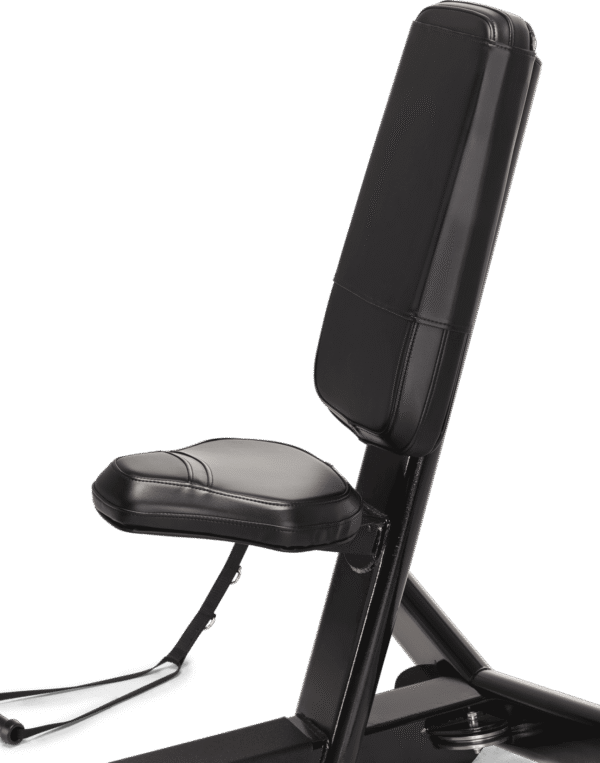

Seat
Vinyl, 4.5 in / 11.4 cm thick foam

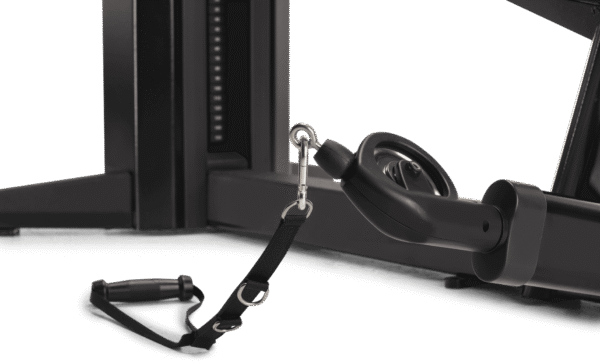

Pulleys
Swivel pulleys

Cable Travel
42 in / 106.6 cm

Rubber Feet
Molded floor protectors

Maximum User Weight
350 lb / 159 kg

Americans with Disabilities Act (ADA)
Wheelchair Accessible

PRODUCT SPECIFICATIONS

Weight Stack
150 lb / 68 kg

Drop Down Weight
N/A

Weight Stack Configuration
5 – 50 x 5 lb / 2.2 – 22.6 x 2.2 kg
60 – 150 x 10 lb / 27.2 – 68 x 4.5 kg

Standard Frame Color
Black River, Flat Black, Platinum Sparkle, White River

Optional Frame Color
Custom colors available upon request

Plastic Color
Ebony

Standard Upholstery Color
Black, Graphite, Blue Ridge, Burgundy, American Beauty Red

Optional Upholstery Color
Custom colors available upon request

PRODUCT DIMENSIONS & WEIGHT

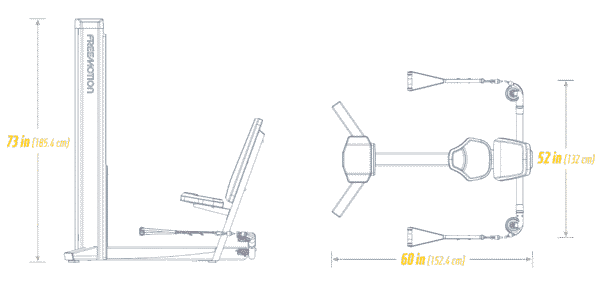

Dimensions L x W x H
60 x 52 x 73 in / 152.4 x 132 x 185.4 cm

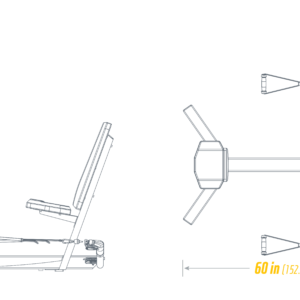

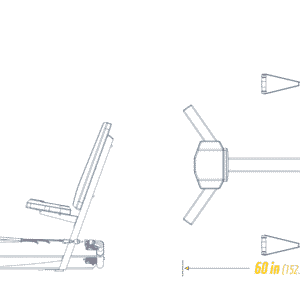

Footprint
60 x 52 in / 152.4 x 132 cm

Weight
435 lb / 197.3 kg

Shipping Dimensions
63 x 50 x 73 in / 160 x 127 x 185.4 cm

Shipping Weight
431 lb / 195.4 kg

WARRANTY (US & CANADA)

Frame: 10 Years

Parts: 3 Years

Cables & Labor: 1 Year

Cosmetic & Wear Items: 6 Months

Upholstery & Padding: 120 Days

WARRANTY (INTERNATIONAL)

Frame: 10 Years

Parts: 3 Years

Cables & Labor: 1 Year

Cosmetic & Wear Items: 6 Months

Upholstery & Padding: 120 Days

Additional information

Weight	431 lbs
Dimensions	63 × 50 × 73 in
