Description

CONSOLE FEATURES

Display Type

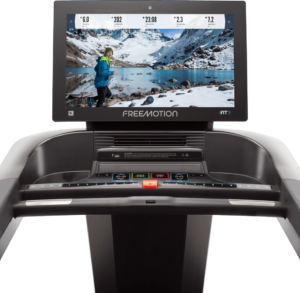

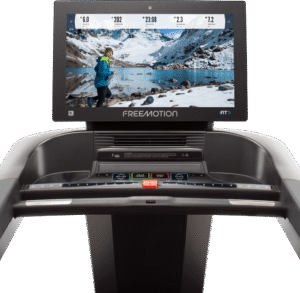

22 in / 55 cm High-Definition Capacitive Touchscreen

Resolution
1080p ISP LCD Screen

Controls
1-STEP™ Incline Controls, 1-STEP™ Speed Controls, Precision Quick Speed Controls

Workout Metrics
Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time Of Day

Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT

Preset Programs
Limitless iFIT Training Options

Google Maps
Enabled

Console Language(s)
English

Featured Languages
EN, also DE, ES, FR, IT, PT, RU, ZH

Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)

Maximum Pause Time
60 Seconds

Additional Options
Quick-Start Manual Mode

ENTERTAINMENT

TV Tuner
US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C

Closed Captioning
CC1-4, TEXT 1-4

Optional Upgrades
N/A

CONNECTIVITY

Recommended Internet Connection
Dedicated Ethernet – Cat 6

Ethernet Requirements
Cat 6 Preferred (Cat 5e or higher required)

WiFi Connection
2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)

WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units

Video Connections
Coax, HDMI Input

Audio Connections
3.5 mm Audio Out, Bluetooth

PRODUCT FEATURES

Drive Motor
AC 5.0 CHP Commercial Drive Motor

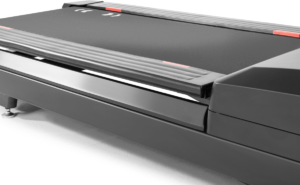

Deck
2-Sided REFLEX™ Deck with Durable Bumper with Progressive Support

Belt
21.5 x 60 in / 54.6 x 152 cm Double Layered Quiet Belt

Rollers
3.5 in / 8.89 cm Spin Balanced Rollers

Platform
N/A

Elevation System
0% to +15% incline

Heart Rate Monitoring
Dual EKG Pulse Sensors, ANT+ and Polar Compatible

Emergency Stop
Safety Key and Clip

Workout Fan
Adjustable CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™

Accessory Charging
USB Charging Port

Accessory Holder(s)
Dual Water Bottle Holders, Secure Phone Holder, all with Removable Inserts

Positioning
Large Adjustable Leveling Feet

Transport Wheels
Front-Mounted Transport Wheels

Color Options
Flat Black (Custom colors available upon request)

Unit Options
Imperial or Metric

Power Options
110-120 VAC, 20 Amp, Dedicated Circuit
220-240 VAC, 15 Amp, Dedicated Circuit

PRODUCT SPECIFICATIONS

Maximum User Weight
400 lb / 181 kg

Step-up Height
12 in / 30.5 cm

Running Surface
21.5 in x 60 in / 54.6 x 152 cm

Speed Range
0-15 mph / 0-24 km/h

DIMENSIONS & WEIGHT

Product Dimensions L x W x H
87 x 34 x 66 in / 221 x 86.3 x 167.6 cm

Product Weight
619 lb / 280.8 kg

Shipping Dimensions L x W x H
89 x 41 x 30 in / 226 x 104.1 x 76.2 cm

Shipping Weight
649 lbs / 294.4 kg

POWER REQUIREMENTS

U.S. & Canada
110-120 VAC, 20 Amp, Dedicated Circuit

International
220-240 VAC, 15 Amp, Dedicated Circuit

HIGH-USAGE WARRANTY (US & CANADA)

Frame: 7 Years
Drive Motor: 7 Years
Parts: 2 Years
Console: 2 Years
Labor: 1 Year
Cosmetic & Wear Items: 6 Months

HIGH-USAGE WARRANTY (INTERNATIONAL)

Frame: 7 Years
Drive Motor: 7 Years
Parts: 2 Years
Console: 2 Years
Labor: 1 Year
Cosmetic & Wear Items: 6 Months

LOW-USAGE WARRANTY (US & CANADA)

Frame: 7 Years
Drive Motor: 7 Years
Parts: 3 Years
Console: 3 Years
Labor: 3 Years
Cosmetic & Wear Items: 6 Months

LOW-USAGE WARRANTY (INTERNATIONAL)

Frame: 7 Years
Drive Motor: 7 Years
Parts: 3 Years
Console: 3 Years
Labor: 1 Year
Cosmetic & Wear Items: 6 Months

Additional information

Weight	649 lbs
Dimensions	89 × 41 × 30 in
