Description

CONSOLE FEATURES

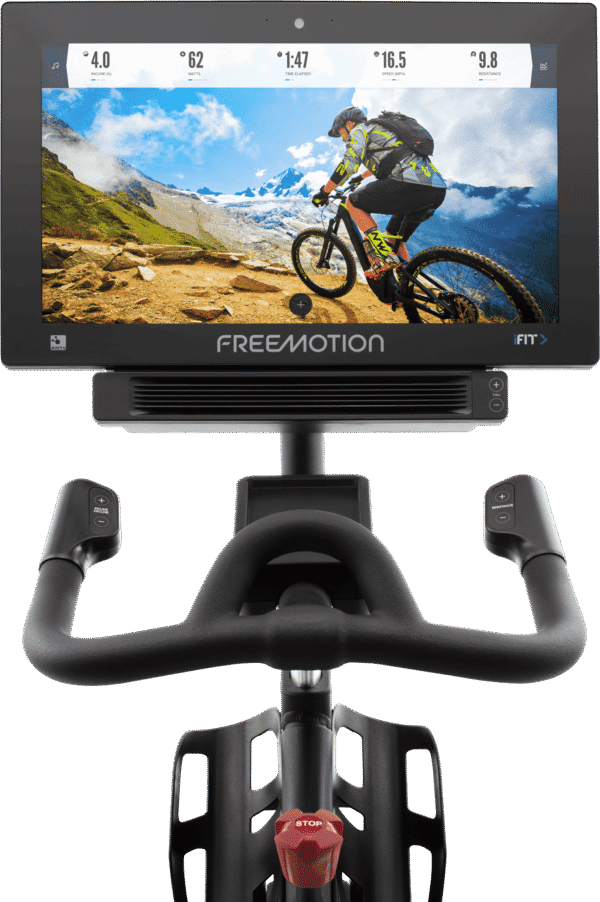

Display Type

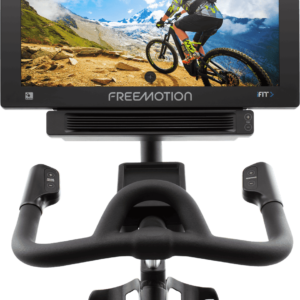

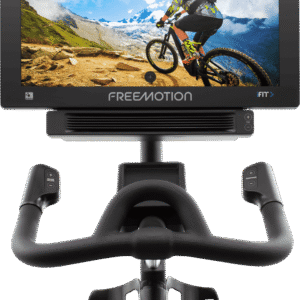

Adjustable 22 in / 55 cm High-Definition Capacitive Touchscreen

Resolution
1080p ISP LCD Screen

Controls
Touchscreen, On-handle Digital Controls

Workout Metrics
Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day

Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT

Preset Programs
Limitless iFIT Training Options

Google Maps
Enabled

Console Language(s)
English

Featured Languages
EN, also DE, ES, FR, IT, PT, RU, ZH

Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)

Maximum Pause Time
60 Seconds

Additional Options
N/A

ENTERTAINMENT

TV Tuner
N/A

Closed Captioning
N/A

Optional Upgrades
N/A

CONNECTIVITY

Recommended Internet Connection
Dedicated Ethernet – Cat 6

Ethernet Requirements
Cat 6 Preferred (Cat 5e or higher required)

WiFi Connection
2.4 / 5 GHZ (Dedicated Ethernet Strongly Recommended)

WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units

Video Connections
HDMI Input

Audio Connections
3.5 mm Audio Out, Bluetooth

PRODUCT FEATURES

Drive System
Direct Drive Flywheel w/ Manual Brake

Crank & Axle
3-Piece Crank

Drive Belt
Gates Carbon GT Belt Drive System

Pedals
Dual-sided pedals (SPD and strap)

Gear Ratio
N/A

Resistance System
SMR™ Silent Magnetic Resistance

Elevation System
-10% decline to +20% incline

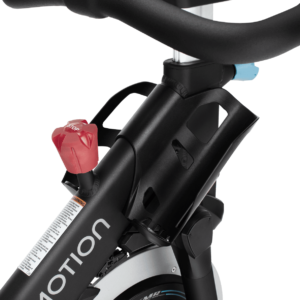

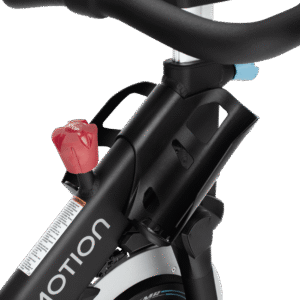

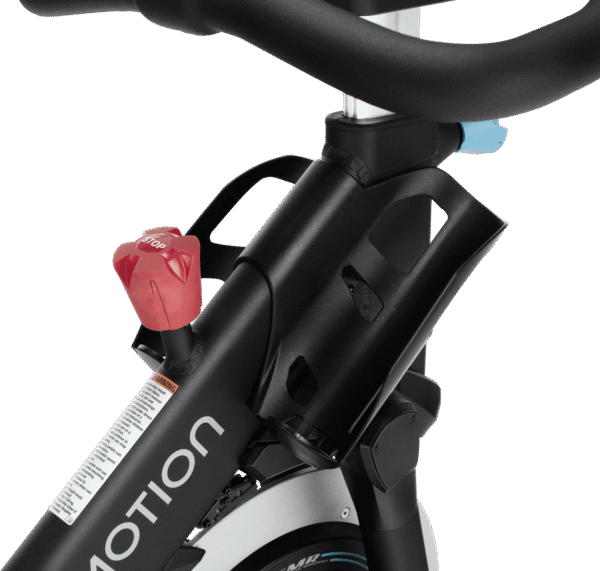

Emergency Stop
Manual Flywheel Break

Heart Rate Monitoring
ANT+ and Polar Compatible

Workout Fan
CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™

Accessory Charging
USB Charging Port

Accessory Holder(s)
Dual Water Bottle Holders, Secure Phone Holder

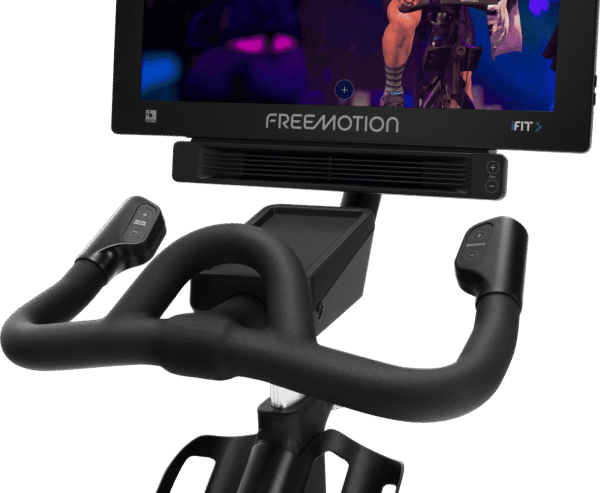

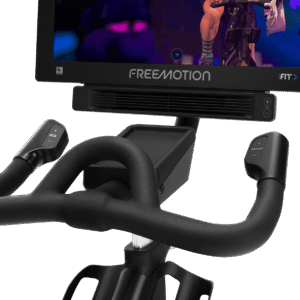

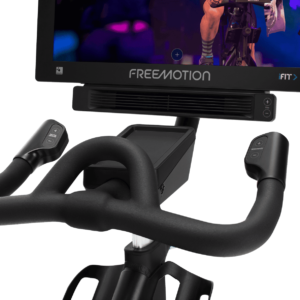

Handlebars
Height Adjustable

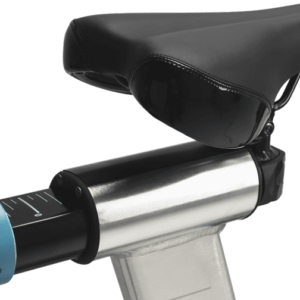

Seat

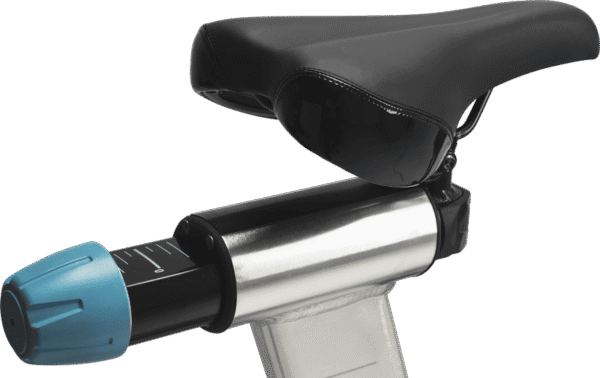

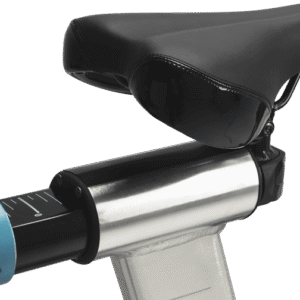

Ergonomic padded saddle with fore and aft adjustments

Frame
Lightweight, Corrosion-Resistant Aluminum Frame

Positioning
Large Adjustable Leveling Feet

Transport Wheels
Front-Mounted Transport Wheels

Color Options
N/A (Flat Black is standard color)

Unit Options
N/A

Power Options
110-120 VAC, 3 Amp
220-240 VAC, 1.5 Amp

Power Cord Storage
Under Unit

PRODUCT SPECIFICATIONS

Maximum User Weight
350 lb / 159 kg

Flywheel Weight
41 lb / 18.7 kg

Resistance Levels
1-24 Levels of Resistance

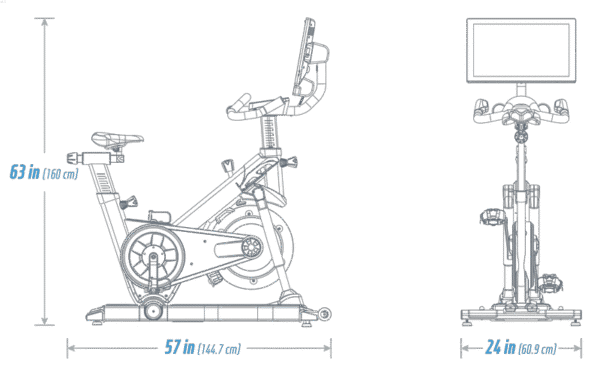

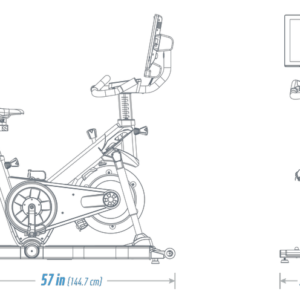

DIMENSIONS & WEIGHT

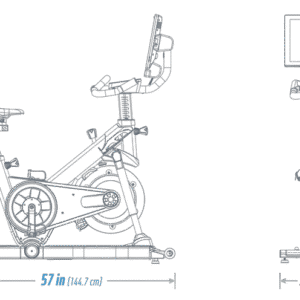

Product Dimensions L x W x H
56.5 x 24 x 61.5 in / 143.5 x 61 x 156.2 cm

Product Weight
168 lb / 76.2 kg

Shipping Dimensions L x W x H
48.5 x 18.5 x 38.5 in / 123.2 x 47 x 97.8 cm

Shipping Weight
194 lb / 88 kg

POWER REQUIREMENTS

U.S. & Canada
110-120 VAC, 3 Amp

International
220-240 VAC, 1.5 Amp

WARRANTY (US & CANADA)

Frame: 7 Years

Belt: 5 Years

Parts & Console: 2 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

WARRANTY (INTERNATIONAL)

Frame: 7 Years

Belt: 5 Years

Parts & Console: 2 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

Additional information

Weight	194 lbs
Dimensions	48.5 × 18.5 × 38.5 in
