Description

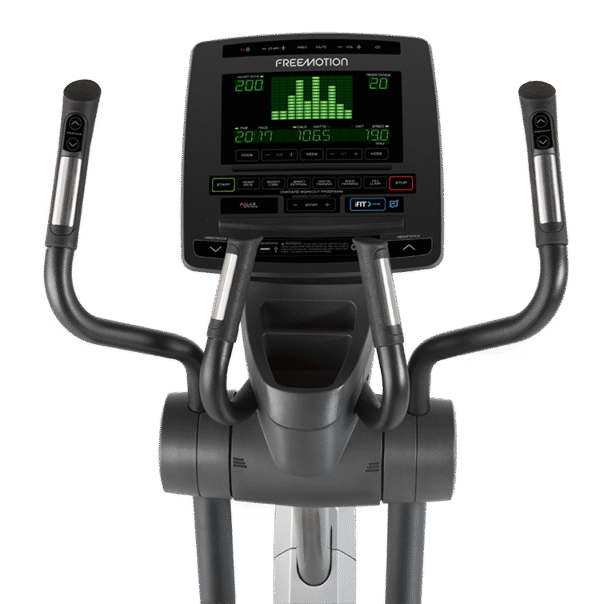

CONSOLE FEATURES

Display Type
Simplified User Interface

Resolution
N/A

Controls
Digital resistance control

Workout Metrics
Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace

Number of Programs
24

Preset Programs
8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training

Google Maps
N/A

Console Language(s)
EN, ES, DE, IT, PT, CH, NL, FR

Featured Languages
N/A

Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)

Maximum Pause Time
60 Seconds

Additional Options
N/A

ENTERTAINMENT

TV Tuner
N/A

Closed Captioning
N/A

Optional Upgrades
15.6 in (39 cm) Personal TV with on-console controls (FMTV 84414),
900/800 MHz TV receiver (MYE900RCVR)

CONNECTIVITY

Recommended Internet Connection
N/A

Ethernet Requirements
N/A

WiFi Connection
2.4 / 5 GHz

WiFi Requirements
10 Mpbs per unit download, 500 Kpbs per unit upload

Video Connections
N/A

Audio Connections
N/A

CSAFE Enabled
Enabled

ECOFIT
N/A

PRODUCT FEATURES

Drive System
Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive

Crank & Axle
2 PC, 20 in / 50.8 cm Stroke

Drive Belt
Quiet Belt Drive System

Pedals
Non-skid, traction control cushion pedals

Gear Ratio
8.85:1

Resistance System
400 Watt self-generator resistance system

Heart Rate Monitoring
Dual-Grip Pulse Sensors, Polar® Wireless Receiver

Workout Fan
N/A

Accessory Charging
N/A

Accessory Holder(s)
Water bottle holder

Grips
Soft touch upper body grips

Positioning
N/A

Transport Wheels
3.3 in / 8.38 cm plastic wheels

Color Options
N/A (Dell Gray is standard color)

Unit Options
N/A

Power Options
N/A

PRODUCT SPECIFICATIONS

Maximum User Weight
400 lb / 182 kg

Step-up Height
9.5 in / 24.1 cm

Stride Length
20 in / 50.8 cm stride length

Resistance Levels
1-24 Levels of Resistance

DIMENSIONS & WEIGHT

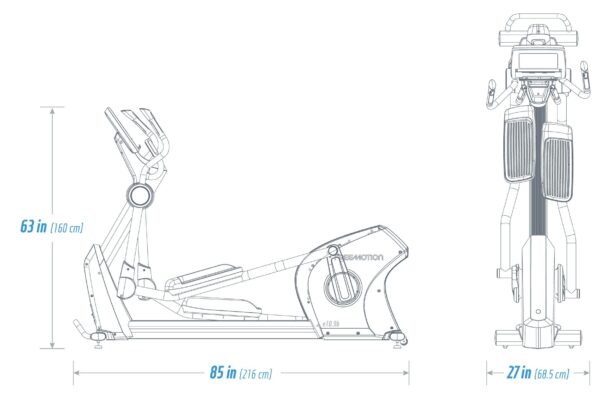

Product Dimensions L x W x H
85 x 27 x 63 in / 215.9 x 68.5 x 160 cm

Product Weight
286.4 lb / 130.2 kg

Shipping Dimensions
91.7 x 32.6 x 25.9 in / 232.9 x 82.8 x 65.7 cm

Shipping Weight
301.8 lb / 137.2 kg

POWER REQUIREMENTS

U.S. & Canada
Input 110~240V, Output 15V 3A

International
Input 110~240V, Output 15V 3A

HIGH-USAGE WARRANTY (US & CANADA)

Frame: 7 Years

Parts: 2 Years

Console: 2 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

HIGH-USAGE WARRANTY (INTERNATIONAL)

Frame: 7 Years

Parts: 2 Years

Console: 2 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

LOW-USAGE WARRANTY (US & CANADA)

Frame: 7 Years

Parts: 3 Years

Console: 3 Years

Labor: 3 Years

Cosmetic & Wear Items: 6 Months

LOW-USAGE WARRANTY (INTERNATIONAL)

Frame: 7 Years

Parts: 3 Years

Console: 3 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

Additional information

Weight	301.8 lbs
Dimensions	91.7 × 32.6 × 25.9 in
