Description

CONSOLE FEATURES

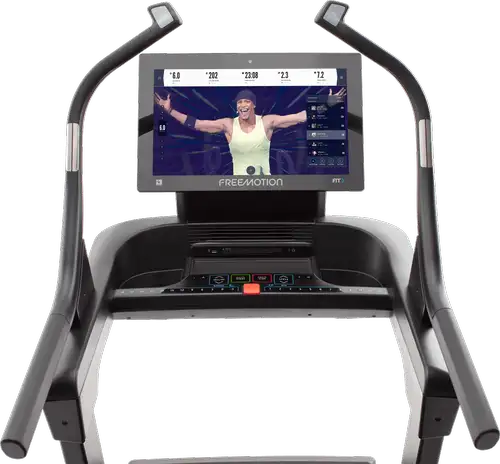

Display Type
22 in / 55 cm High-Definition Capacitive Touchscreen

Resolution
1080p ISP LCD Screen

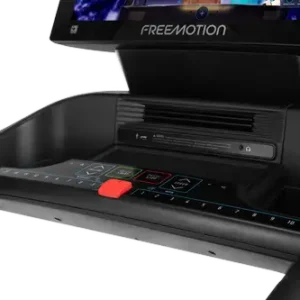

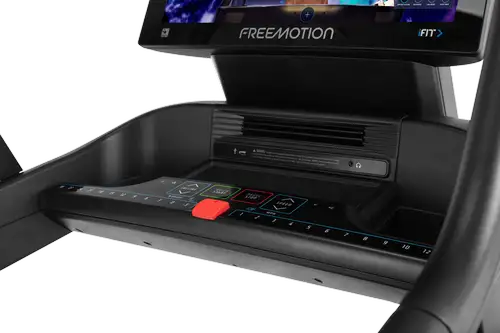

Controls
Touchscreen, On-Handle, 1-STEP™ Touch Controls, Precision Quick Speed Controls

Workout Metrics
Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time Of Day

Number of Programs
Thousands of Global Workouts and Studio Classes with iFIT

Preset Programs
Limitless iFIT Training Options

Google Maps
Enabled

Console Language(s)
English

Manual / Decal Languages
M1: EN, FCA
M2: EN
K1: EN, ES, FCA
K2: EN, DE, ES, FR, IT, PT, NL, CH

Content Languages
EN, CH, NL, FR, DE, IT, NW, RU, SP, PT

Maximum Workout Time
99:59 (99 Minutes + 59 Seconds)

Maximum Pause Time
60 Seconds

Additional Options
Quick-start Manual Mode

ENTERTAINMENT

TV Tuner
US & Canada: NTSC/ATSC, QAM, Pro:Idiom, Set-Top Box Ready
International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C

Closed Captioning
CC1-4, TEXT 1-4

Optional Upgrades
N/A

CONNECTIVITY

Recommended Internet Connection
Dedicated Ethernet – Cat 6

Ethernet Requirements
Cat 6 Preferred (Cat 5e or higher required)

WiFi Connection
2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)

WiFi Minimum Requirements
10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units

Video Connections
Coax, HDMI Input

Audio Connections
3.5 mm Audio Out, Bluetooth

PRODUCT FEATURES

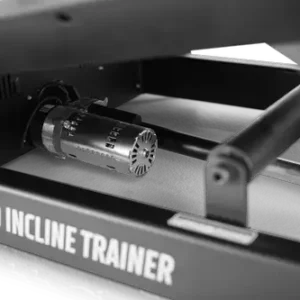

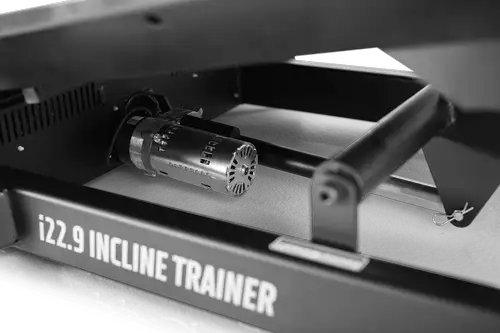

Drive Motor
Rear-mounted AC 5.0 CHP Commercial Drive Motor

Deck
1 in / 2.5 cm Double-sided, Cushioned Deck

Belt
21.5 x 60 in / 54.6 x 152 cm Double Layered Quiet Belt

Rollers
3.5 in Spin Balanced Rollers with Tapered Belt Guide

Platform
Spacious Rear Platform

Elevation System
-3% decline to +30% incline

Heart Rate Monitoring
Dual EKG Pulse Sensors, ANT+, and Polar Compatible

Emergency Stop
Safety Key and Clip

Workout Fan
Adjustable CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™

Accessory Charging
USB charging port

Accessory Holder(s)
Dual Water Bottle Holders, Secure Phone Holder, all with Removable Inserts

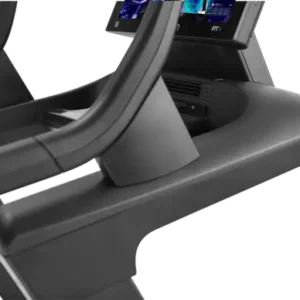

Grips
Soft touch upper body grips

Positioning
Large adjustable leveling feet

Transport Wheels
Rear-mounted Transport Wheels and Front-mounted Retractable Swivel Casters

Color Options
Flat Black (Custom colors available upon request)

Unit Options
Imperial or metric

Power Options
N/A

PRODUCT SPECIFICATIONS

Maximum User Weight
400 lb / 181 kg

Step-up Height
15.5 in / 39.4 cm

Running Surface
21.5 x 60 in / 54.6 x 152 cm

Speed Range
0-15 mph / 0-24 km/h

DIMENSIONS & WEIGHT

Product Dimensions L x W x H
82 x 34.8 x 75.3 in / 208.3 x 88.3 x 191.3 cm

Product Weight
750 lbs / 340.2 kg

Shipping Dimensions L x W x H
85 x 43 x 33.7 in / 215.9 x 109.2 x 85.5 cm

Shipping Weight
780 lbs / 353.8 kg

POWER REQUIREMENTS

U.S. & Canada
110-120 VAC, 20 Amp, Dedicated Circuit

International
220-240 VAC, 15 Amp, Dedicated Circuit

HIGH-USAGE WARRANTY (US & CANADA)

Frame: 7 Years

Drive Motor: 7 Years

Parts: 2 Years

Console: 2 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

HIGH-USAGE WARRANTY (INTERNATIONAL)

Frame: 7 Years

Drive Motor: 7 Years

Parts: 2 Years

Console: 2 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

LOW-USAGE WARRANTY (US & CANADA)

Frame: 7 Years

Drive Motor: 7 Years

Parts: 3 Years

Console: 3 Years

Labor: 3 Years

Cosmetic & Wear Items: 6 Months

LOW-USAGE WARRANTY (INTERNATIONAL)

Frame: 7 Years

Drive Motor: 7 Years

Parts: 3 Years

Console: 3 Years

Labor: 1 Year

Cosmetic & Wear Items: 6 Months

Additional information

Weight	780 lbs
Dimensions	82 × 34.8 × 75.3 in
